1000L Capacity High Speed Three-Layer Blow Molding Machine with PLC Control

Brand Name : Huayu

Model Number : HYBM1003

Certification : CE,ISO9001

Place of Origin : Weifang

MOQ : 1 set

Price : Negotiate

Payment Terms : T/T,L/C

Supply Ability : 5 sets per month

Delivery Time : 5 months

Packaging Details : container

Capacity : 1000L-3

Platen Distance : 900-2400MM

Warranty : 1 Year

Power Supply : 380V/50Hz

Extrudor Motor : 55kw*2 90kw

Machine Type : High Speed Plastic Bottle Making Machine

Average Consumption : 250KW

Bucket Thickness : Not Very Thick

Total Power : 390kw

Maximum Air Pressure : 0.8Mpa

Air Seat Stroke : 400mm

Contact Now

1000L Three-Layer Blow Molding Machine
1000L Capacity High Speed Three-Layer Blow Molding Machine with PLC Control

The 1000L three-layer blow molding machine represents advanced manufacturing technology for producing sophisticated containers with specialized functional layers. This system utilizes three independent extruders in an ABC configuration, with each extruder processing different material types that feed into a co-extrusion die head for precise material layering before parison formation.

This innovative configuration enables the creation of containers with optimal barrier properties, featuring an inner layer for product compatibility, a middle layer for barrier functionality, and an outer layer for structural integrity and appearance. The machine achieves production speeds of 16-25 containers per hour for 1000L capacity, with each extruder featuring a 55 kW power rating and 100mm screw diameters.

The key technological advancement is the triple-layer die head with sophisticated flow channels that maintain material separation until the final formation stage, preventing premature mixing while ensuring perfect layer adhesion. Advanced control systems feature modular programming that allows operators to independently adjust parameters for each layer, including temperature profiles, extrusion speeds, and individual layer thickness ratios.

Technical Specifications
Specification Value Details
Applicable Material HDPE
Manufacturer China*HUAYU
Capacity Range 200-1000L, 3 layers
Voltage Pending
Total Power 390kW
Average Power 250kW
Machine Dimensions (L*W*H) 8*5.6*6.5
Productivity 16-25 pcs/h
Auto Feeder System
Component Specification Features
Hopper Material Stainless Steel Stable performance, easy maintenance
Feeding Type Spring Loaded
Feeding Motor 2.2/2.2/2.2kW
Extrusion System
Component Specification Features
Screw Diameter 100/120/100mm Nitrided 38CrMoAIA
Screw L/D Ratio 28:1 Special designed screw ensures uniform and efficient material plasticizing
Extruder Motor 55/90/55kW
Reducer 280/330/280 Best quality brand in China, long life and low noise
Screw Heating Power 4.4*12kW
Plasticizing Capacity 600kg/h
Machine Gallery

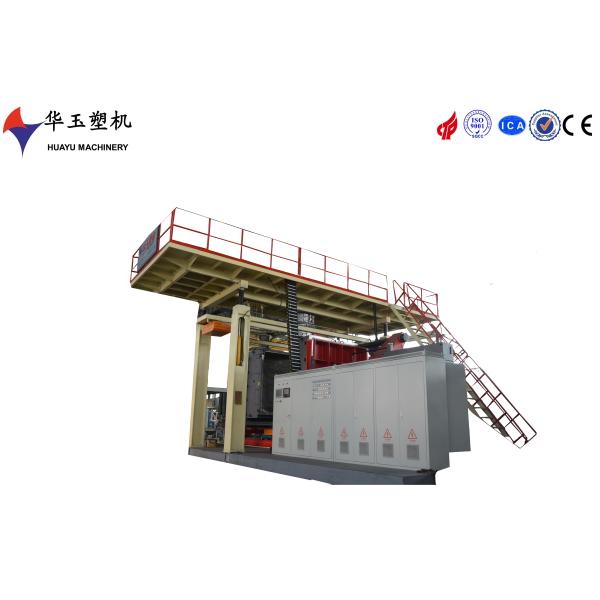

1000L Capacity High Speed Three-Layer Blow Molding Machine with PLC Control 1000L Capacity High Speed Three-Layer Blow Molding Machine with PLC Control 1000L Capacity High Speed Three-Layer Blow Molding Machine with PLC Control
