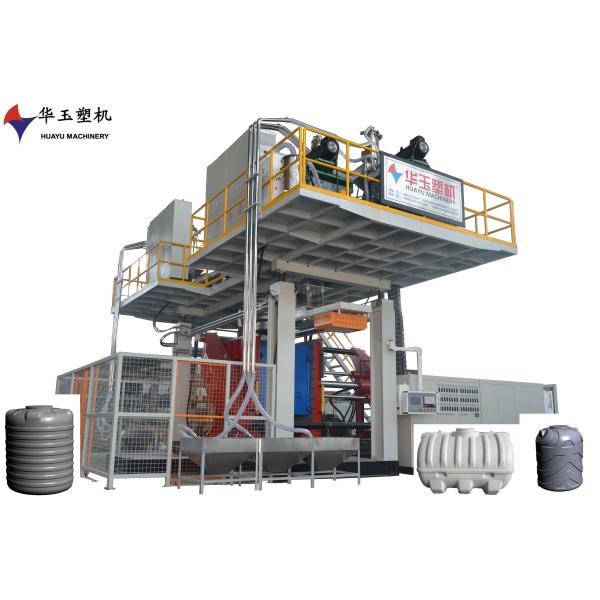

2000L 14-Layer Blow Molding Machine

Name: 2000L 14Layer Blow Molding Machine
Brand: Huayu
Price: 1 USD

Buy cheap 2000L 14-Layer Blow Molding Machine product

Model Number : HYBM-2000-14

Machinery Test Report : Provided

Machine Weight : 5000-8000 kg

Payment Terms : L/C,T/T

Automatic : Yes

Air Pressure : 0.8MPa

Thickness Control Points : 200 points

Price : Negotiate

Mian Oil Pump : gear pump160cc

Plasticizing Capacity : 500kg/h

Supply Ability : 4 sets per month

Screw Diameter : 90/120/90mm

Clamping Force : 1000-3000 kN

MOQ : 1 set

Delivery Time : 5 months

Production Speed : 100-200 pcs/h

Cycle Time : 60-120 seconds

Place of Origin : Weifang

Layer : 1-10Layers

Packaging Details : by container

Mould Cooling System : Air Cooling

Certification : CE,ISO9001

Servo Motor : 48kw

Brand Name : Huayu

Air Consumption : 1.5m3/min

Contact Now

Reaching the peak of perfection, the 2000L 14-layer co-extrusion blow molding machine by Weifang Huayu Plastic Machinery Co., Ltd. is the culmination of years of intensive R&D by our technical team. This is more than just a machine; it is Huayu’s declaration of challenging the limits of plastic machinery.

Fourteen-layer co-extrusion technology represents the world’s advanced level in the field of large and medium-sized hollow molding. It enables atomic-level control over the container's microstructure. Through the precise stacking of fourteen layers, we can implement "self-healing" interlayer designs, allowing adjacent materials to rapidly spring back and seal minor punctures. Moreover, the machine supports the processing of nanocomposite materials, integrating advanced substances like graphene into the layers to impart electrical conductivity, anti-static properties, or superior gas barrier performance.

Structurally, we employ a high-strength frame and a double-pull-rod clamping mechanism to ensure zero mold deformation under immense clamping force. To manage the significant shear heat generated by fourteen-layer extrusion, we have designed a unique spiral diversion cooling system to maintain consistent melt temperature. This flagship machine targets sectors with ultimate quality demands, such as nuclear power, and high-end biopharma. With this premier product, Huayu Machinery aims to empower global clients to break the boundaries of material application.

Basic Specification
applicable material	HDPE	China
capacity range	500-2000L,14layers
Machine Dimension	11.4117.6m
Voltage	415V/50HZ
total power	674.5kw
average power	340kw
productivity	10-24pcs/h
Auto Feeder
hopper material	stainless steel	Stable performance, easy maintenance
feeding type	vacuum loaded
feeding motor	11kw*2
Extrusion System
Screw diameter	*80mm2 & 90mm6*	Nitrided 38CrMoAIA
Screw L/D ratio	28 :1	special designed screw can ensure the material plasticizing uniform and efficient
Extruder motor	*37kw2 & 45kw6*
Reducer	225*8	Best quality brand in china ,long life and low noise
Screw heating power	4kw*30
Plasticizing capacity	800kg/h
die head
Accumulator capacity	60kg	designed by ourselves and get the patent
Die diameter	According to products
Die head heating power	140kw
Clamping System
platen size	1900210070mm(WHT)	smooth running, no noise; the clamping force is big
clamping cylinder	140*2+300	smooth running, no noise; the clamping force is big
clamping cylinder stroke	2000mm
clamping force	1800KN
